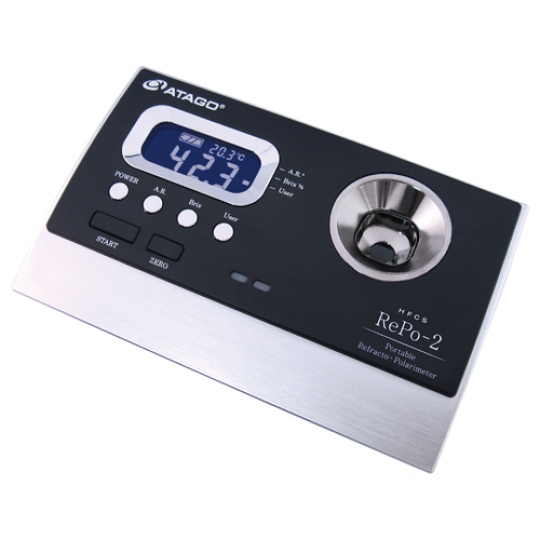

Portable Refracto-Polarimeter RePo-2

Price: Quick contact

The RePo-2 can determine the amount of fructose (%) in HFCS.
Like the RePo-1, the RePo-2 is a two-in-one refractometer and polarimeter hybrid.
In addition to angle of rotation and Brix, the RePo-2 also converts and displays the amount of fructose (%) within HFCS.
The RePo-2 is ideal for various industries such as food and beverage, or sugar refining.

Model: RePo-2
Producer: ATAGO - JAPAN
Origin : JAPAN
Status :Available

Model: Repo-2.
Scale: Angle of Rotation, Brix, Fructose % at HFCS, Temperature.
Measurement Readings: Angle of Rotation, Brix,Temperature, User (Fructose %), Brix with Automatic Temperature Compensation.
Measurement range: Angle of Rotation : -5.00 to +5.00°(*1), Brix : 0.0 to 85.0%, Fructose % : 0.0 to 99.9%, Temperature : 15 to 40℃.
Display range: Angle of Rotation: -5.99 to +5.99°, Brix : -2.0 to 86.6%, Fructose% : -2.0 to 102%, Temperature : 14.0 to 41.0℃.
Resolution: Angle of Rotation : 0.01°, Brix : 0.1%, Fructose : 0.1%, Temperature : 0.1℃.
Measurement accuracy: Angle of Rotation : +-0.1°(at 20℃), Brix : +-0.2%, Temperature : +-1℃.
Repeatability: Angle of Rotation : ±0.05°(at 20℃), Brix : ±0.1%.
Wavelength: 589nm (equivalent to the sodium-D line spectrum).
Temperature compensation range: Brix : 15 to 40℃.
Ambient Temperature: 15 to 40℃.
Storage invironment temperatre: 0 to 65℃.
Light source: LED.
Sample volume: 3 mL.
Measurement time: 12 seconds.
Power supply: Size AAA alkaline battery x4.
International Protection Class: IP67.
Dimension & Weight: 101 x 160 x 38mm, 325g (main unit only).
(*1)These ranges are measured by the device’s 20mm light path.
These are convertible to below ranges: -25.00°to +25.00° with a 100mm observation tube, -50.00°to +50.00° with a 200mm observation tube.
Any sample that has Angle of Rotation within above ranges can be measured by RePo units.
Options: Standard liquid Repo-series : RE-99110.
            · MAGIC™ for RePo : RE-79000.
            · RePo Small Volume Adapter : RE-72093
